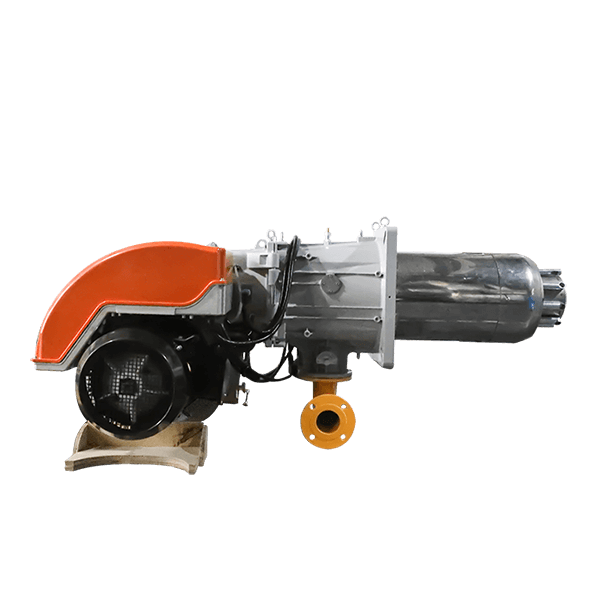

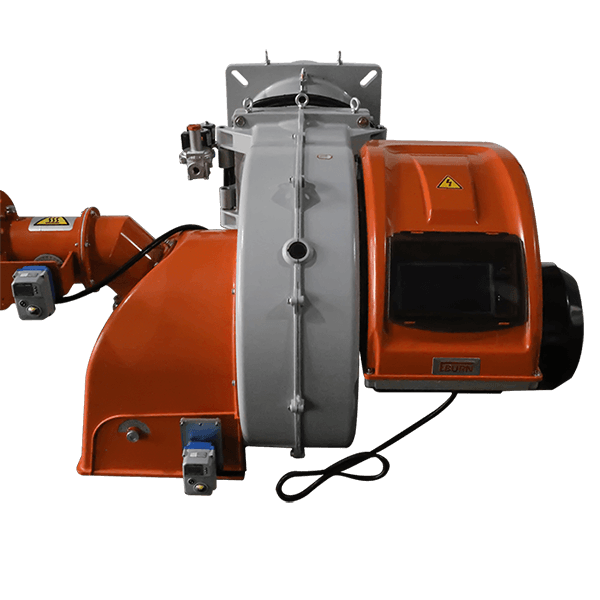

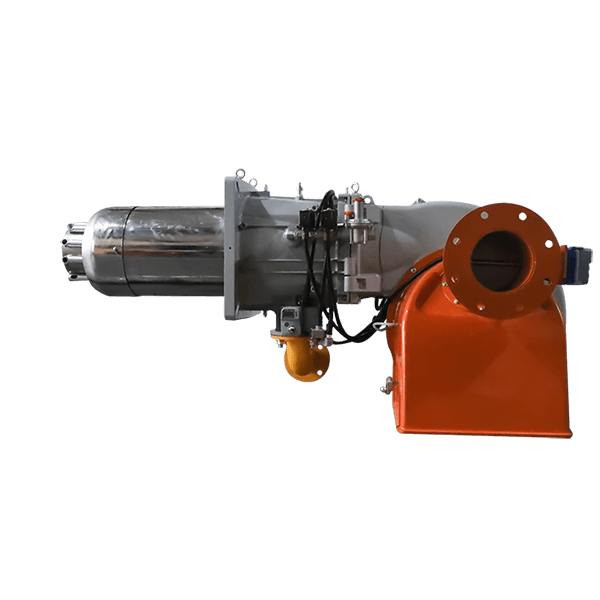

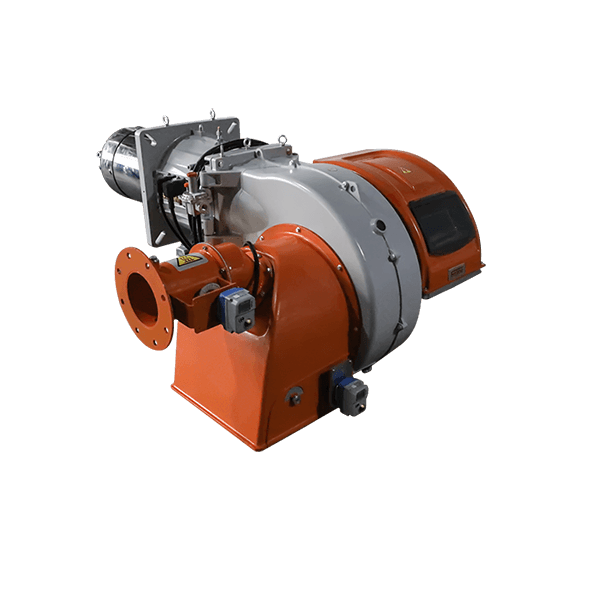

BYQEF4.2FGR Dual Fuel Gas Light Oil Burner Industrial Boiler Burner

    BYQEF4.2FGR Dual Fuel Gas Light Oil Burner from modulating light oil/gas mixed burners with gas side electronic modulation, light oil side two-stage. Electronic modulation. Mechanical pulverization.

    Model: BYQEF4.2FGR

    Brand: Baiyan

    Fuel: gas/oil

    Output Power: 600-4700kw

    Control Mode: Electronic Modulation

    Applicable Power Supply: AC 400v 50Hz

    Applicable Boiler: 6T/H

    Certificate: ISO

    Packaging Details:Neutral/Customized packaging

    MOQ: 1pcs

    Delivery terms: Sea/Air/Land

    Delivery Port: Ningbo Port

    Applications:

    All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.

Features:

1.Electronic Modulation

2.Gas 1:7 , Light oil1:4

3.Combustion air intake with throttle damper. Air flow adjustment with electric cam.

4.Gas train exit: low.

5.Manual fuel switching

6.Continuous modulation operation by installing P.I.D. controller in the control panel (to be ordered separately with modulation probe)

7.Fully closing air damper on shutdown to avoid loss of heat through the chimney.

8.Electric motor for pump drive

Technical Parameters

Model

BYQEF4.2FGR

BYQEF2.8FGR

Fuel

Natural Gas

Natural Gas

Control Mode

Electronic Modulation

Electronic Modulation

Output Power

Kw

700-6500

600-4700

Flow rate

Sm³/H

74-688

63-497

Second Fuel

Light oil

Light oil

Second Fuel Power

Kw

1750-6500

1000-4700

Flow rate

Kg/h

148-548

84-396

Fan Motor Power

kw

15

9.2

Applicable power supply

AC 400v 50Hz

AC 400v 50Hz

Safety Protection Level

IP 54 protection level can be improved according to different requirement)

NOx

80

80

Applicable boiler

T

6

4

Dimension

mm

1520*2000*1160

1520*2000*1160

Weight

Kg

330

300
