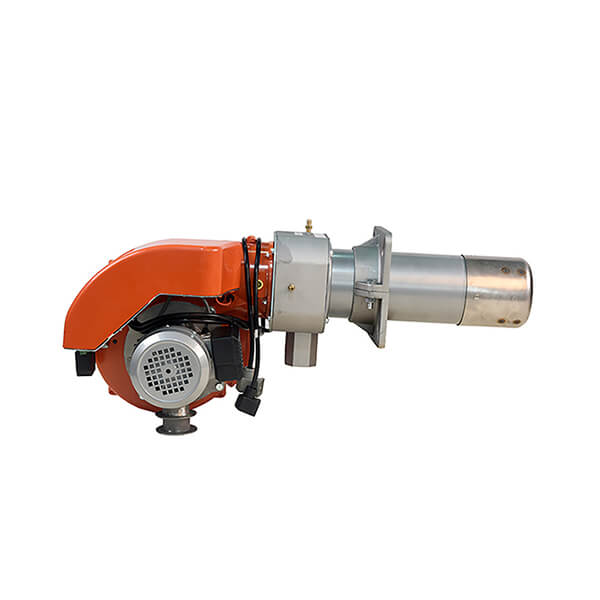

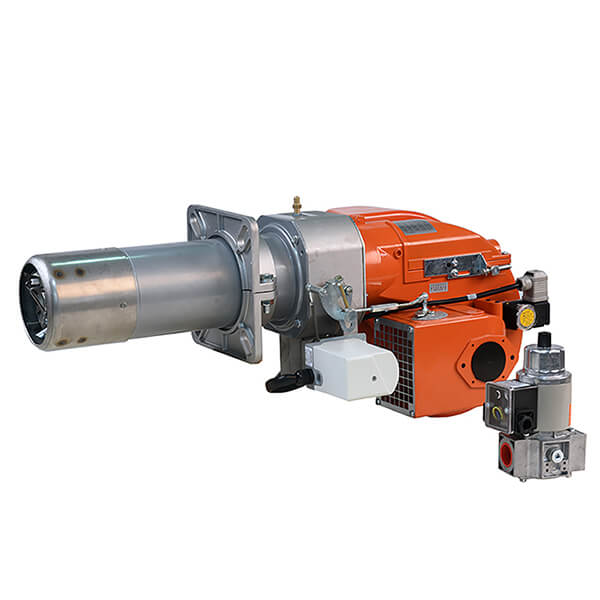

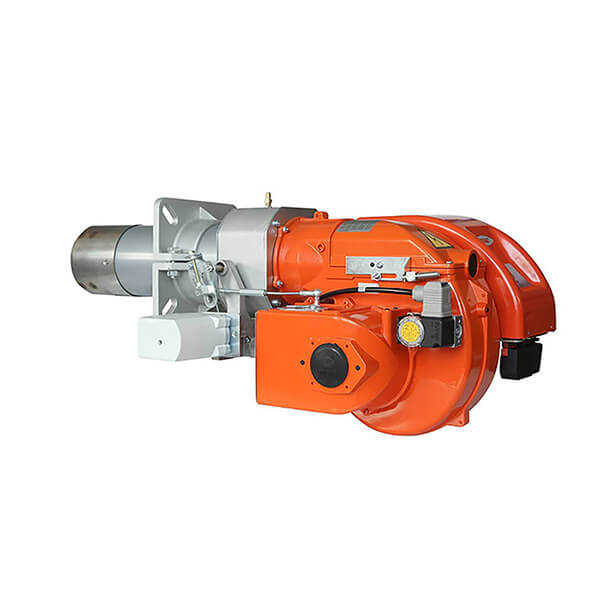

Two Stage BY35P Natural Gas Burner for Industrial Boiler
BY35P burners have been designed and built in compliance with current regulations and directives, applying the known technical rules of safety and envisaging all the potential danger situations.
Model: BY35P
Output Power: 80-410kw
Control Mode: two stage
Applicable Power Supply: AC 230v 50Hz
Applicable Boiler: 0.4T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
Brand: Baiyan
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Application scenarios:
All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Features:
1.Two-stage operation
2.Combustion air intake with throttle damper. Air flow adjustment with electric servomotor.
3.Gas train exit: low.
4.7-pole socket for burner electric and thermostatic supply.
5.Fully closing air damper on shutdown to avoid loss of heat through the chimney.
6.Regulating combustion air and blast-pipe.
7.4-pole socket for second stage control.
8.Sliding boiler coupling flange to adapt the blast-pipe to the various types of boilers.
9.CE version gas train is complete with operation and safety valve with electromagnetic drive, minimum pressure switch, pressure regulator and gas filter.
10.Flame detection by ionisation electrode with connector for micro amp meter.
Technical Parameters | ||||||
Model | BY10 | BY20 | BY28 | BY35 | BY35P | |
Output Power | Kw | 30-115 | 60-205 | 100-280 | 80-410 | 80-410 |
Control Mode | single stage operation | two stage | ||||
Gas Consumption | Sm³/H | 3.8-11.5 | 6-20.5 | 10--28 | 8-41 | 8-43 |
Motor Power | kw | 0.1 | 0.18 | 0.18 | 0.37 | 0.37 |
Applicable power supply | AC 230v 50Hz | |||||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | |||||
NOx | ＜80 | |||||
Applicable boiler | T/h | 0.1 | 0.2 | 0.3 | 0.4 | 0.4 |
Kw | 69 | 138 | 207 | 276 | 276 | |
103*kcal/h | 60 | 120 | 180 | 240 | 240 | |
Static Pressure | Kpa | 3 | 3 | 5 | 5 | 4 |
Dynamic Pressure | 2 | 2 | 3 | 3 | 3 | |
Dimension | mm | 560*310*350 | 780*370*410 | 780*370*410 | 1030*510*410 | 1030*510*410 |
Weight | Kg | 12 | 18 | 18 | 38 | 38 |
