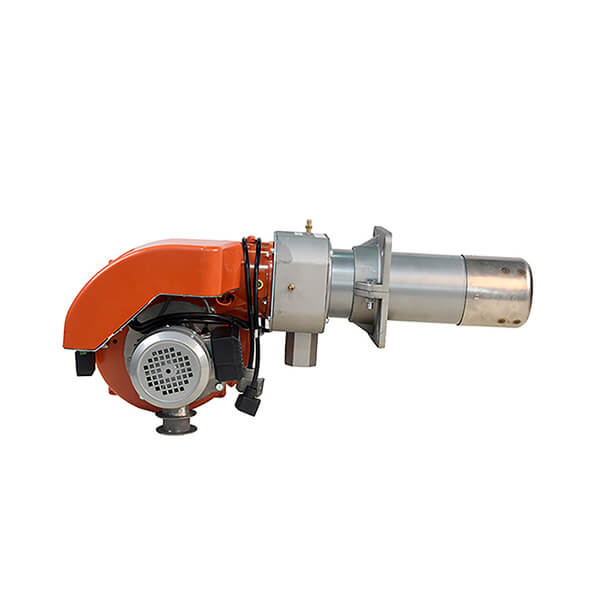

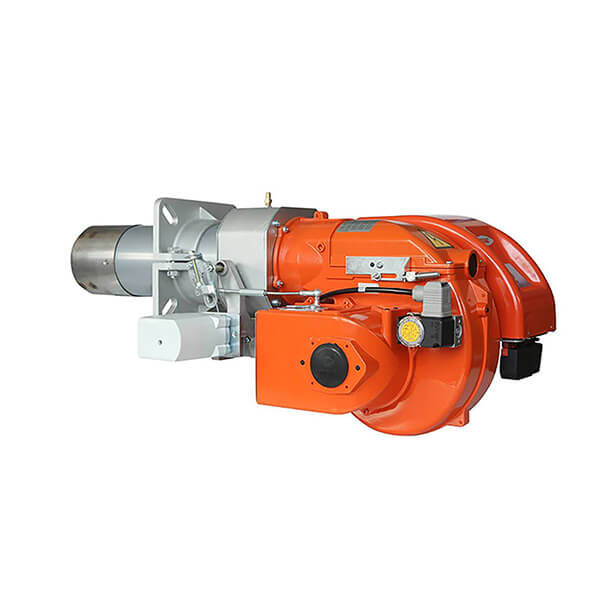

BY35 industrial burner for boiler natural gas burner single stage

    The design of BY35P is in accordance with the current regulations and instructions, which applies known security rules and imagined all potential dangerous situations.

    Model: BY35

    Output Power: 80-410kw

    Control Mode: single stage

    Applicable Power Supply: AC 230v 50Hz

    Applicable Boiler: 0.4T/H

    Certificate: ISO

    Packaging Details:Neutral/Customized packaging

    Brand: Baiyan

    MOQ: 1pcs

    Delivery terms: Sea/Air/Land

    Delivery Port: Ningbo Port

    Application scenarios: All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.

Features:

  • 1.Single-stage operation

  • 2.Combustion air intake with throttle damper. Manual adjusting of the air flow rate.

  • 3.Gas train exit: high/low.

  • 4.7-pole socket for burner electric and thermostatic supply.

  • 5.Regulating combustion air and blast-pipe.

  • 6.Sliding boiler coupling flange to adapt the blast-pipe to the various types of boilers.

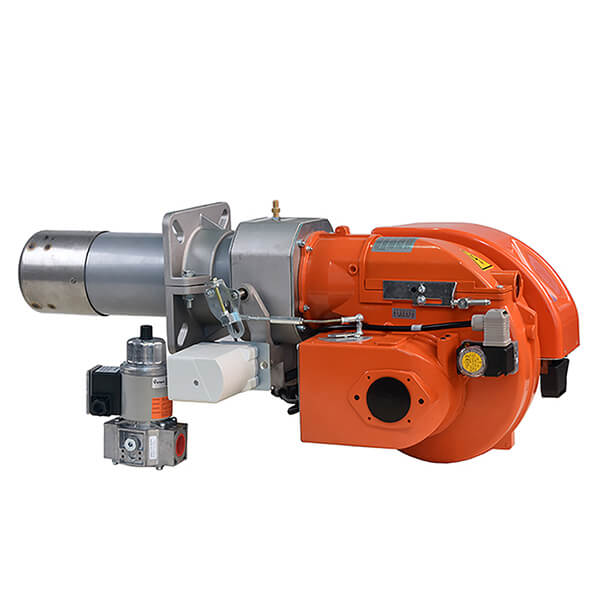

  • 7.CE version gas train is complete with operation and safety valve with electromagnetic drive, minimum pressure switch, pressure regulator and gas filter.

  • 8.Flame detection by ionisation electrode with connector for micro amp meter.

Technical Parameters

Model

BY10

BY20

BY28

BY35

BY35P

Output Power

Kw

30-115

60-205

100-280

80-410

80-410

Control Mode

single stage operation

two stage

Gas Consumption

Sm³/H

3.8-11.5

6-20.5

10--28

8-41

8-43

Motor Power

kw

0.1

0.18

0.18

0.37

0.37

Applicable power supply

AC 230v 50Hz

Safety Protection Level

IP 40 protection level can be improved according to different requirement)

NOx

80

Applicable boiler

T/h

0.1

0.2

0.3

0.4

0.4

Kw

69

138

207

276

276

103*kcal/h

60

120

180

240

240

Static Pressure

Kpa

3

3

5

5

4

Dynamic Pressure

2

2

3

3

3

Dimension

mm

560*310*350

780*370*410

780*370*410

1030*510*410

1030*510*410

Weight

Kg

12

18

18

38

38
