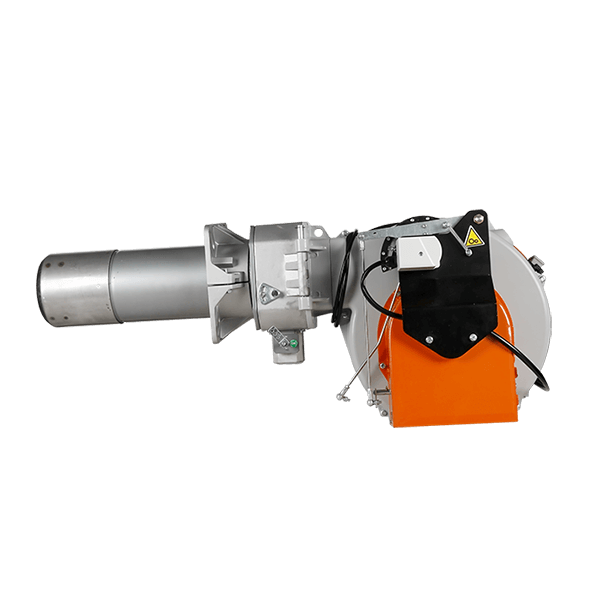

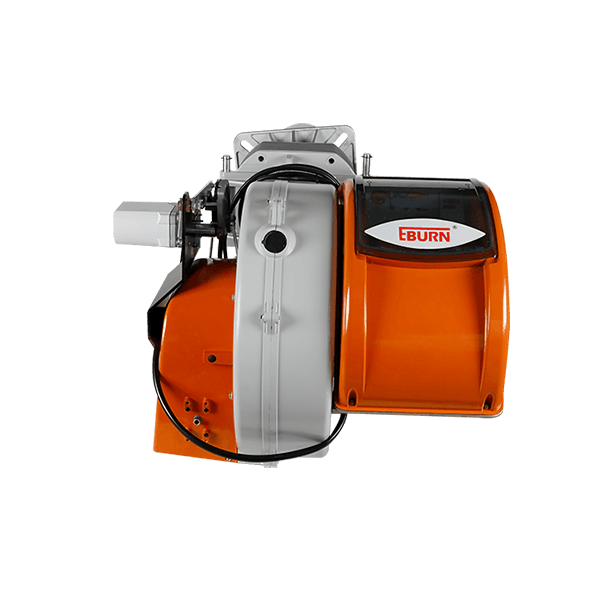

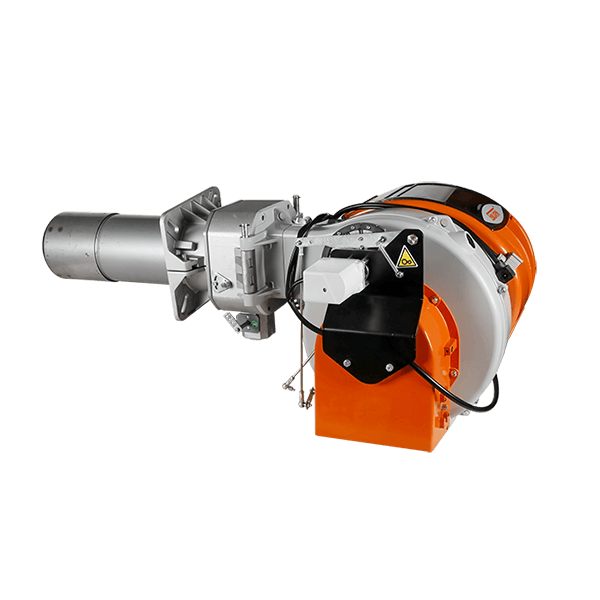

BY80LXP hot sale two stage LPG burner industrial burner for boiler burner

    BY80LXP LPG burner is a mechanical device using an ignition to mix fuel and air together in order to provid a platform for combustion.

    Model: BY80LXP

    Brand: Baiyan

    Fuel: LPG

    Output Power: 130-800kw

    Control Mode: two progressive stage

    Applicable Power Supply: AC 400v 50Hz

    Applicable Boiler: 0.8-1T/H

    Certificate: ISO

    Packaging Details:Neutral/Customized packaging

    MOQ: 1pcs

    Delivery terms: Sea/Air/Land

    Delivery Port: Ningbo Port

    Applications: boilers, furnaces, heaters, kilns, ovens, dryers,etc

Features:

1.Pneumatic operation at two progressive stages.

2.Regulating combustion air and blast-pipe.

3.Combustion air intake with throttle damper. Air flow adjustment with mechanical cam.

4.Gas train exit:high/low.

5.Continuous modulation operation by installing P.I.D. controller in the control panel (to be ordered separately with modulation probe).

6.Control panel with display diagram for working mode with indication lights .

7.Electric control board in light alluminum alloy with IP55 protection rating

8.7-pole socket for burner electric and thermostatic supply

9.4-pole socket for second stage control or for the connection of the PID electronic regulator.

10.Electric control board in light alluminum alloy with IP55 protection rating

11.Modulation ratio 1:6.

Technical Parameters

Model

BY85P

BY80LXP

BY85MC

Output Power

Kw

170-850

130-800

170-850

Control Mode

two stage

 sliding  two stage/modulation

Gas Consumption

Sm³/H

18-90

13--80

18-90

Motor Power

kw

1.1

Applicable power supply

AC400v 50Hz

Safety Protection Level

IP 40 protection level can be improved according to different requirement)

NOx

80

Applicable boiler

T/h

0.8-1

Kw

552-690

103*kcal/h

480-590

Static Pressure

Kpa

6--10

6--106--10

Dynamic Pressure

6--8

6--86--8

Dimension

mm

1070*800*700

Weight

Kg

78
