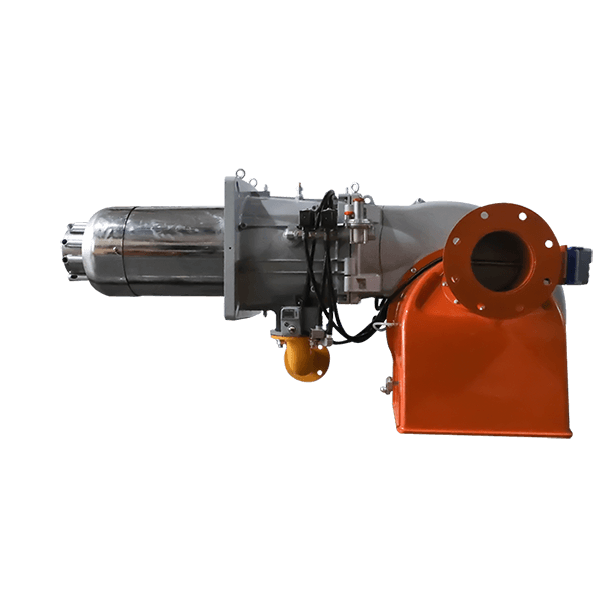

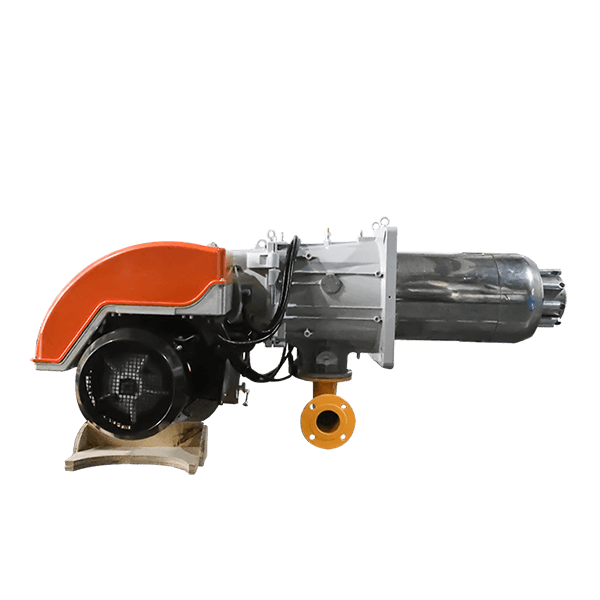

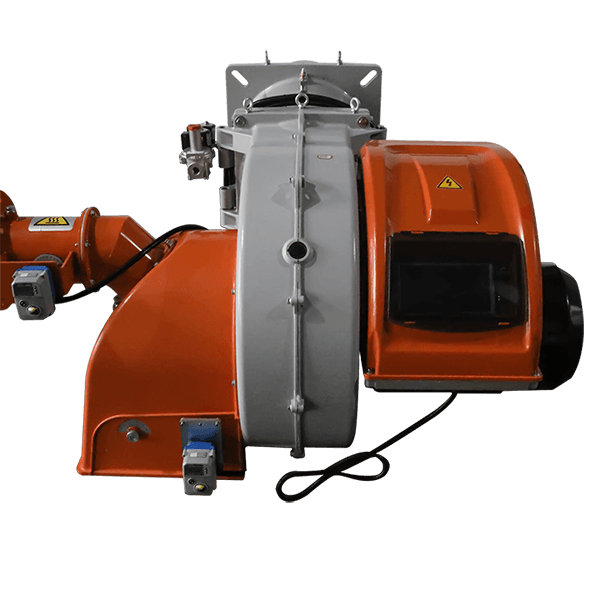

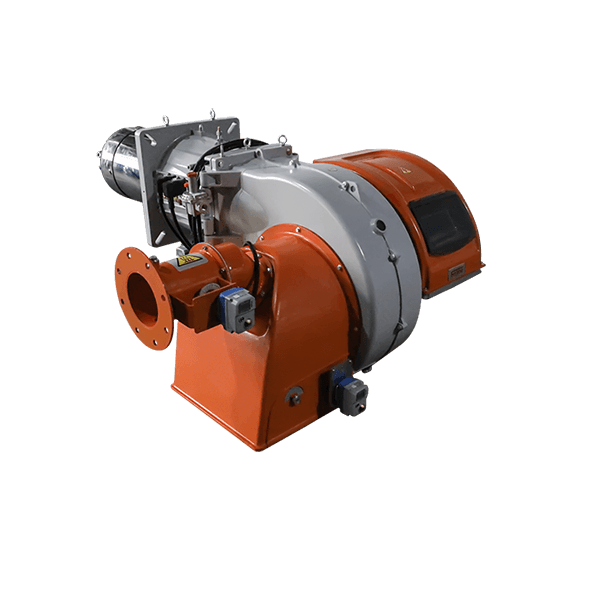

Dual Fuel Gas Light Oil Burner BYQEF4.2FGR Industrial Boiler Burner
BYQEF4.2FGR Dual Fuel Gas Light Oil Burner from modulating light oil/gas mixed burners with gas side electronic modulation, light oil side two-stage. Electronic modulation. Mechanical pulverization.
Model: BYQEF4.2FGR
Brand: Baiyan
Fuel: gas/oil
Output Power: 600-4700kw
Control Mode: Electronic Modulation
Applicable Power Supply: AC 400v 50Hz
Applicable Boiler: 6T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Applications:
All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Features:
1.Electronic Modulation
2.Gas 1:7 , Light oil1:4
3.Combustion air intake with throttle damper. Air flow adjustment with electric cam.
4.Gas train exit: low.
5.Manual fuel switching
6.Continuous modulation operation by installing P.I.D. controller in the control panel (to be ordered separately with modulation probe)
7.Fully closing air damper on shutdown to avoid loss of heat through the chimney.
8.Electric motor for pump drive
Technical Parameters | |||
Model | BYQEF4.2FGR | BYQEF2.8FGR | |
Fuel | Natural Gas | Natural Gas | |
Control Mode | Electronic Modulation | Electronic Modulation | |
Output Power | Kw | 700-6500 | 600-4700 |
Flow rate | Sm³/H | 74-688 | 63-497 |
Second Fuel | Light oil | Light oil | |
Second Fuel Power | Kw | 1750-6500 | 1000-4700 |
Flow rate | Kg/h | 148-548 | 84-396 |
Fan Motor Power | kw | 15 | 9.2 |
Applicable power supply | AC 400v 50Hz | AC 400v 50Hz | |
Safety Protection Level | IP 54 （protection level can be improved according to different requirement) | ||
NOx | ＜80 | ＜80 | |
Applicable boiler | T | 6 | 4 |
Dimension | mm | 1520*2000*1160 | 1520*2000*1160 |
Weight | Kg | 330 | 300 |
