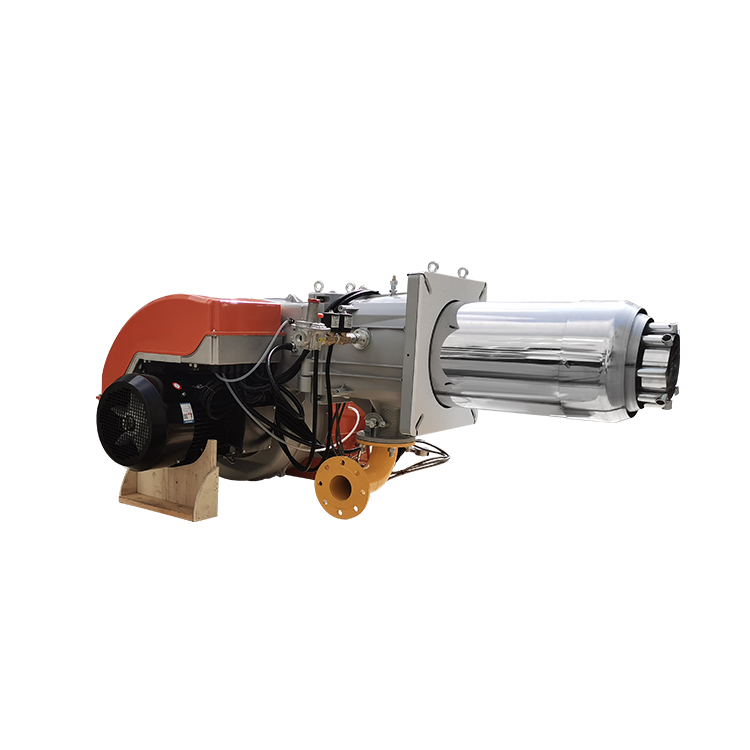

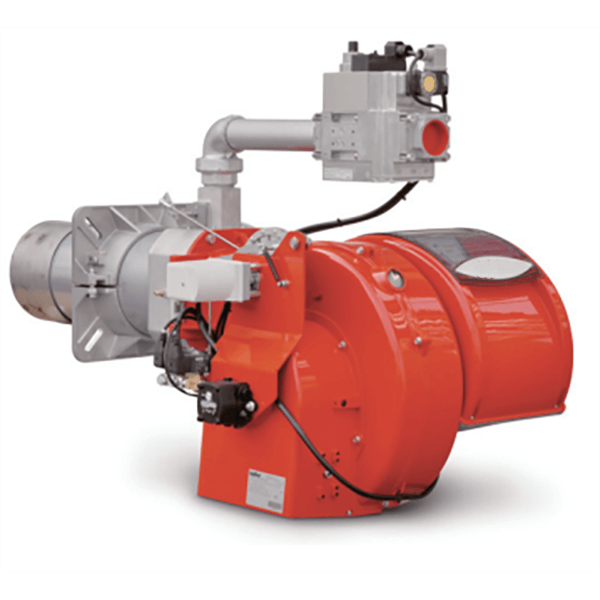

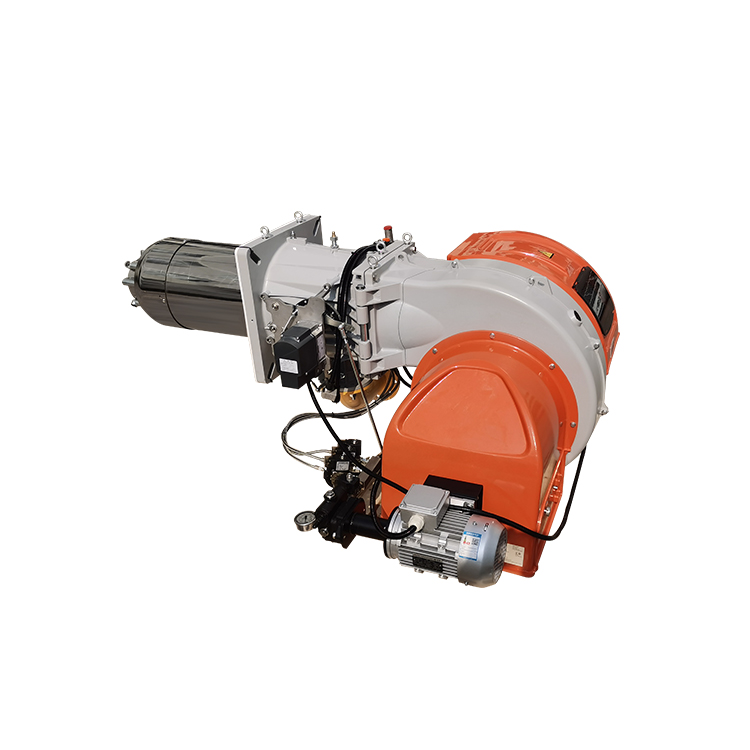

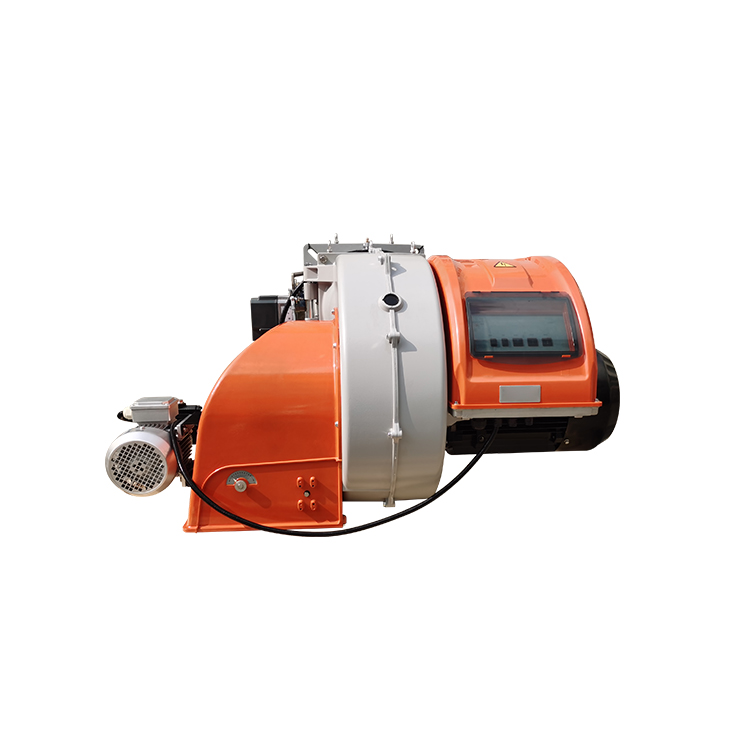

BYML160MC gas&oil burner of industrial boiler Mechanical Modulation
Model: BYML160MC
Brand: Baiyan
Fuel: gas and oil
Output Power: 180-850kw
Control Mode: Mechanical Modulation,gas side progressive two-stage operation, diesel side two-stage
Applicable Power Supply: AC 400v 50Hz
Applicable Boiler: 1.8T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Gas and fuel oil burners of stationary boilers are intended for burning gas and fuel oil, as well as for full combustion (in combination with furnace) of fuel by creating homogeneous fuel-air mixture.
Technical Parameters | |||||
Model | BYL45P | BYL60P | BYL85P | BYL105P | |
Output Power | Kw | 160-450 | 250-600 | 200-850 | 320-1050 |
Control Mode | two stage flame | ||||
Fuel Consumption | Kg/h | 13-38 | 21-50.6 | 16.9-71.6 | 27-88.5 |
Motor Power | kw | 0.5 | 0.65 | 1.1 | 1.5 |
Applicable power supply | AC 220v 50Hz | AC 400v 50Hz | AC 380v 50Hz | ||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | ||||
NOx | ＜80 | ||||
Applicable boiler | T | 0.5 | 0.7 | 1 | 1.2 |
Dimension | mm | 1000*600*510 | 1000*600*510 | 1070*800*700 | 1070*800*700 |
Weight | Kg | 34 | 36 | 79 | 80 |
