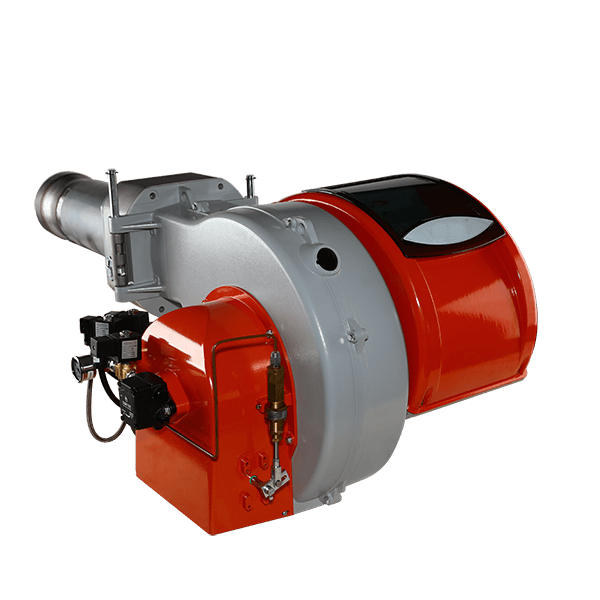

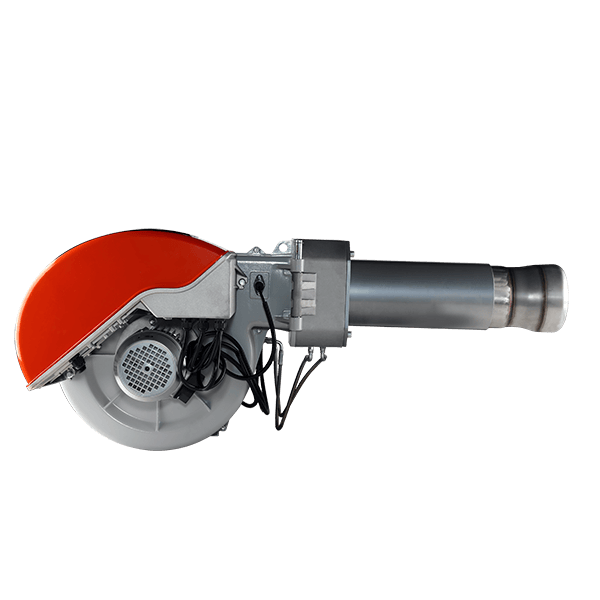

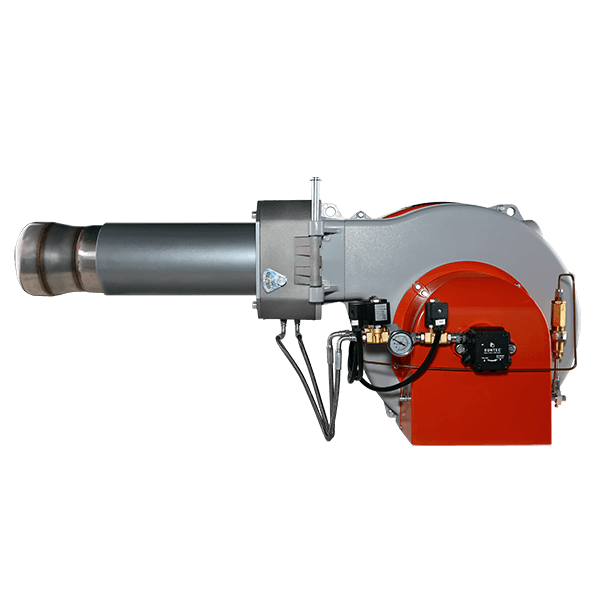

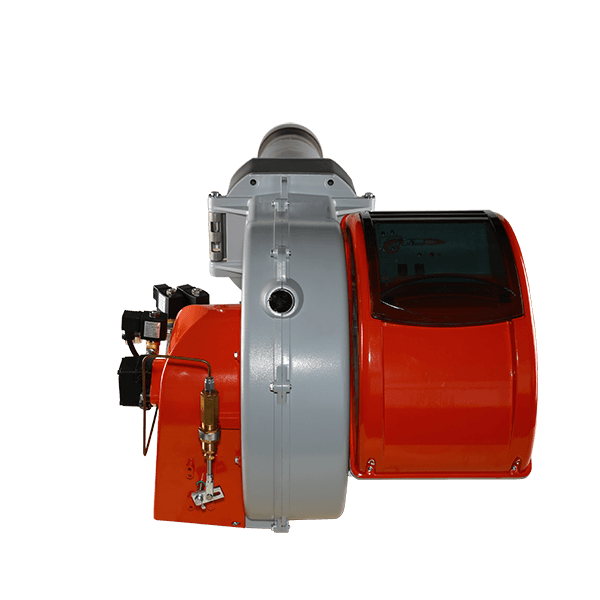

BYL85P boiler burner for industrial hot sale deating device
BYL85 light oil burner is a part attached to an oil furnace, water heater, or boiler. It ignites heating oil/biodiesel fuel used to heat air or water through a heat exchanger.
Model: BYL85P
Brand: Baiyan
Fuel: Light Oil
Output Power: 200-850kw
Control Mode: two stage
Applicable Power Supply: AC 400v 50Hz
Applicable Boiler: 1T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Our Light oil burner is suitable for all kinds of light oil other than gasoline, diesel, aviation kerosene, solvent oil as fuel! Diesel burners are more commonly used!
Technical Parameters | |||||
Model | BYL45P | BYL60P | BYL85P | BYL105P | |
Output Power | Kw | 160-450 | 250-600 | 200-850 | 320-1050 |
Control Mode | two stage flame | ||||
Fuel Consumption | Kg/h | 13-38 | 21-50.6 | 16.9-71.6 | 27-88.5 |
Motor Power | kw | 0.5 | 0.65 | 1.1 | 1.5 |
Applicable power supply | AC 220v 50Hz | AC 400v 50Hz | AC 380v 50Hz | ||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | ||||
NOx | ＜80 | ||||
Applicable boiler | T | 0.5 | 0.7 | 1 | 1.2 |
Dimension | mm | 1000*600*510 | 1000*600*510 | 1070*800*700 | 1070*800*700 |
Weight | Kg | 34 | 36 | 79 | 80 |
