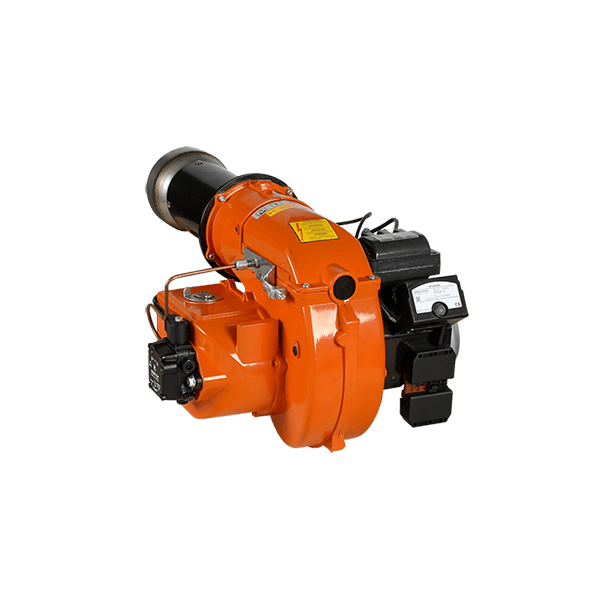

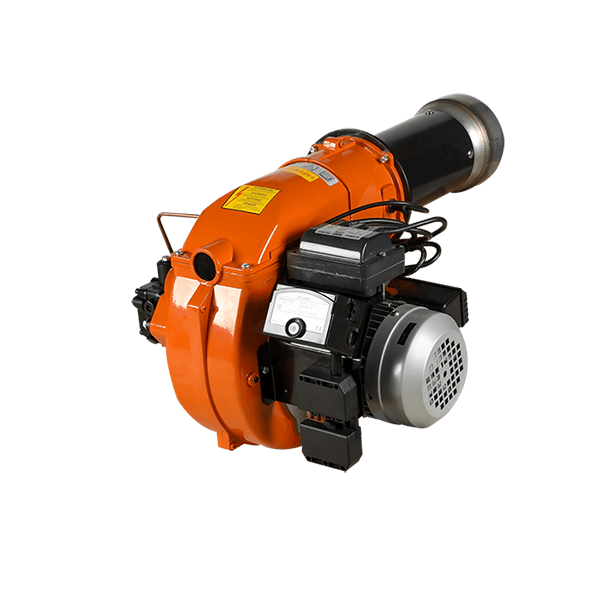

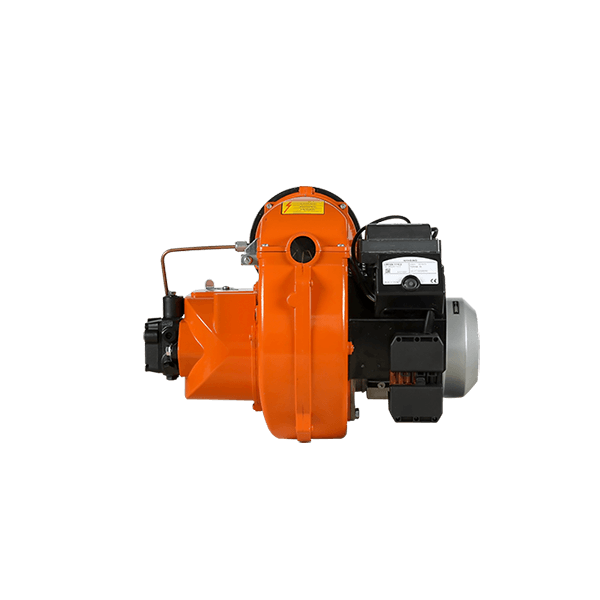

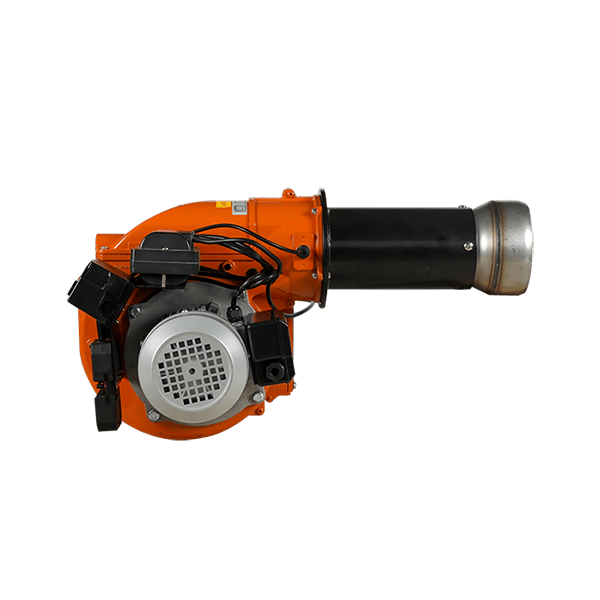

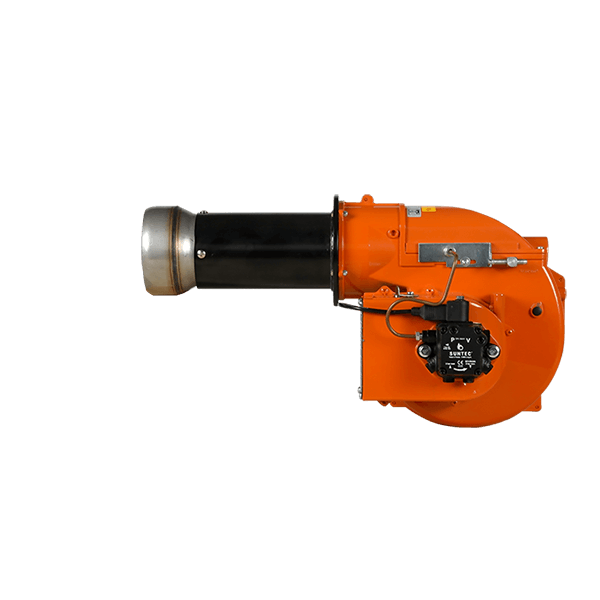

BYL35P Light Oil Burner Two Stage burner for industrial boiler
BYL35P is suitable for different brands and types of thermal, steam and incineration boilers and process applications.
Model: BYL35P
Brand: Baiyan
Fuel: Light Oil
Output Power:170-370kw
Control Mode: two stage
Applicable Power Supply: AC 230v 50Hz
Applicable Boiler: 0.4T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Application scenarios: all kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Features：
Diesel burner. two-stage operation
Adjust the combustion head
Combustion intake with throttle damper. Air volume adjustment: manual
The combustion head can be removed without removing the burner from the boiler, simplifying maintenance.
Slip-on boiler connection flanges allow blast pipes to be adapted to various types of boilers.
Oil supply circuit consisting of gear pump with pressure regulator, shut-off valve and safety valve
Flame detection via phototransistor
Technical Parameters | |||||||
Model | BYL14 | BYL14P | BYL26 | BYL26P | BYL35 | BYL35P | |
Output Power | Kw | 83-166 | 190-310 | 178-391 | |||
Control Mode | single stage | two stage | single stage | two stage | single stage | two stage | |
Fuel Consumption | Kg/h | 7--14 | 16-26.1 | 15-33 | |||
Motor Power | kw | 0.18 | 0.25 | 0.37 | |||
Applicable power supply | AC 230v 50Hz | AC 230v 50Hz | |||||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | ||||||
NOx | ＜80 | ||||||
Applicable boiler | T | 0.1 | 0.4 | 0.2 | 0.3 | 0.3 | 0.4 |
Dimension | mm | 475*455*340 | 650*520*385 | 940*490*390 | |||
Weight | Kg | 18 | 18 | 32 | |||
