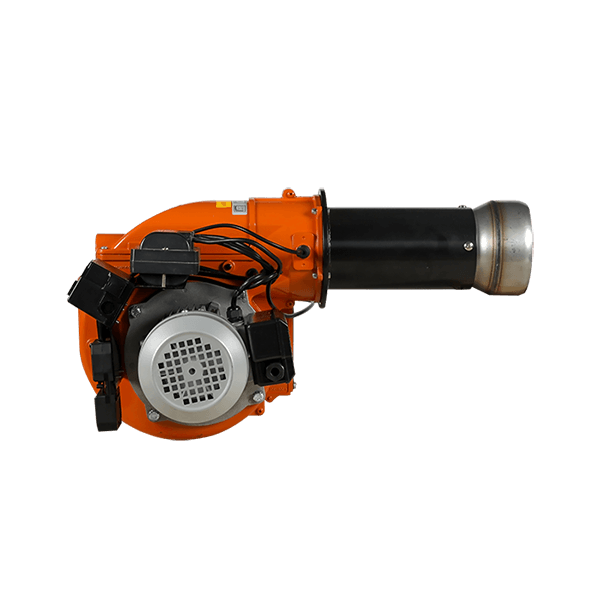

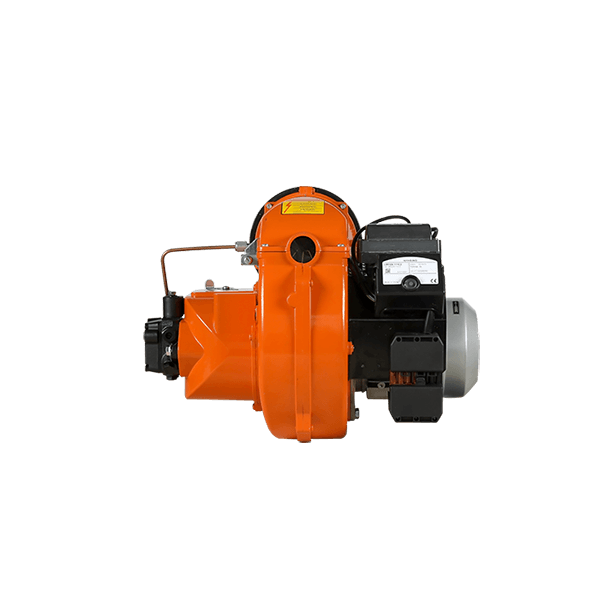

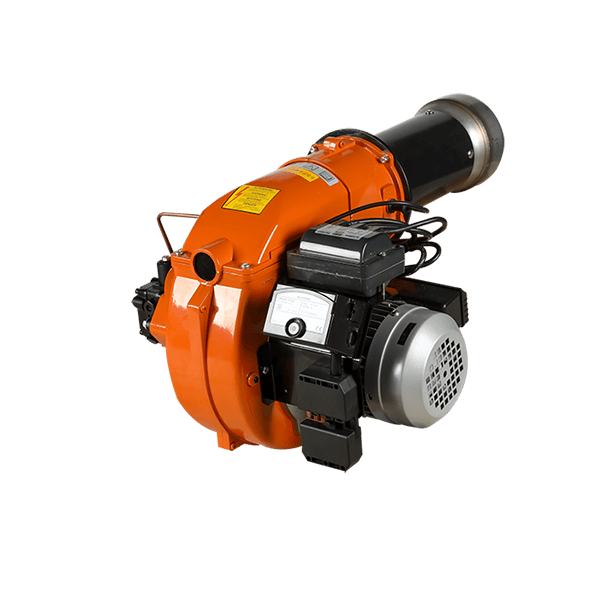

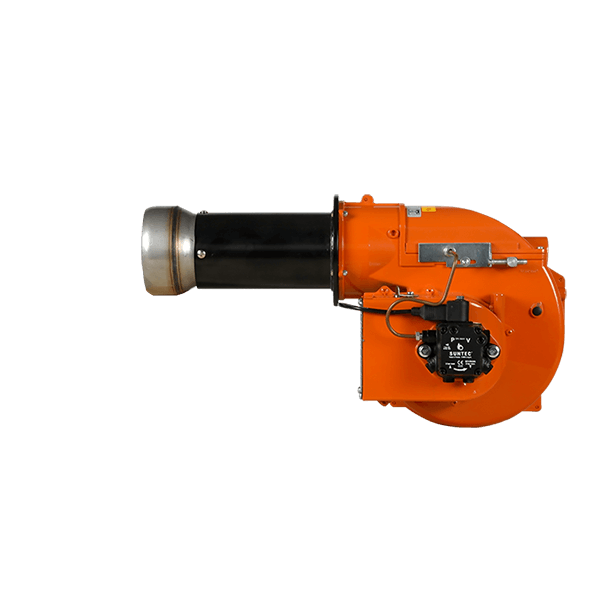

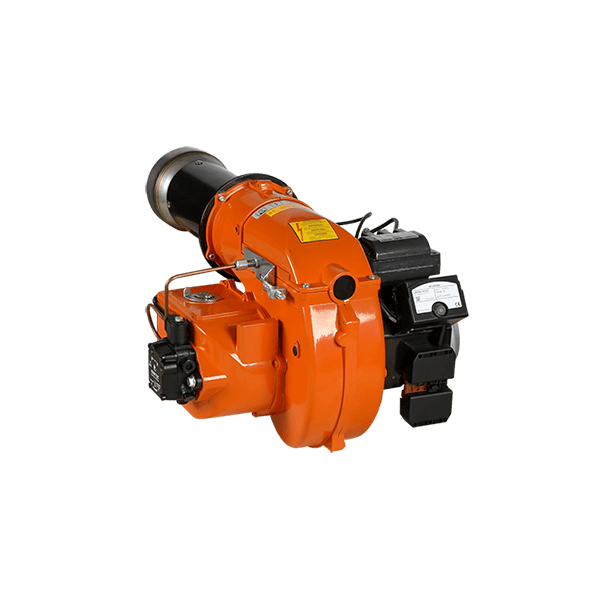

Light Oil Diesel Burner BYL35 Single Stage for industrial boiler burner

    BYL35 is suitable for different brands and types of thermal, steam and incineration boilers and process applications. Light oil burner variants range from 17kW to 30MW (depending on device resistance)

    Model: BYL35

    Brand: Baiyan

    Fuel: Diesel

    Output Power:170-370kw

    Control Mode: single stage

    Applicable Power Supply: AC 230v 50Hz

    Applicable Boiler: 0.3T/H

    Certificate: ISO

    Packaging Details:Neutral/Customized packaging

    MOQ: 1pcs

    Delivery terms: Sea/Air/Land

    Delivery Port: Ningbo Port

    Application scenarios: all kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers

Features:

  1. Diesel burner. single stage operation

  2. Adjust the combustion head

  3. Combustion intake with throttle damper. Air volume adjustment: manual

  4. The combustion head can be removed without removing the burner from the boiler, simplifying maintenance.

  5. Slip-on boiler connection flanges allow blast pipes to be adapted to various types of boilers.

  6. Oil supply circuit consisting of gear pump with pressure regulator, shut-off valve and safety valve

  7. Flame detection via phototransistor

Technical Parameters

Model

BYL14

BYL14P

BYL26

BYL26P

BYL35

BYL35P

Output Power

Kw

83-166

190-310

178-391

Control Mode

single stage

two stage

single stage

two stage

single stage

two stage

Fuel Consumption

Kg/h

7--14

16-26.1

15-33

Motor Power

kw

0.18

0.25

0.37

Applicable power supply

AC 230v 50Hz

AC 230v 50Hz

Safety Protection Level

IP 40 protection level can be improved according to different requirement)

NOx

80

Applicable boiler

T

0.1

0.4

0.2

0.3

0.3

0.4

Dimension

mm

475*455*340

650*520*385

940*490*390

Weight

Kg

18

18

32
