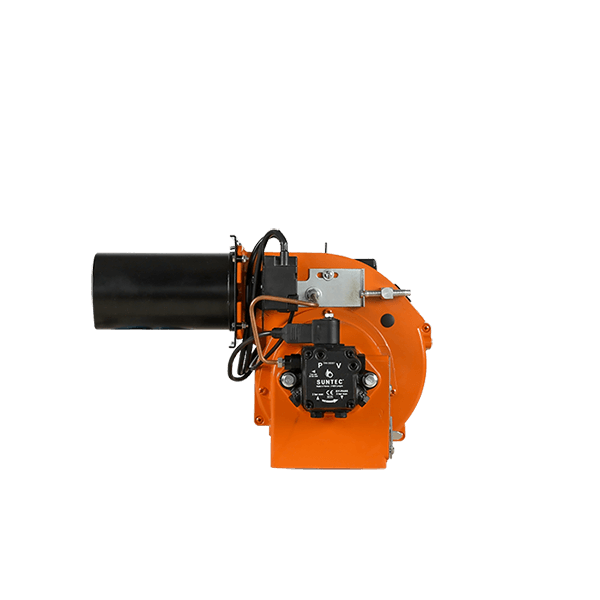

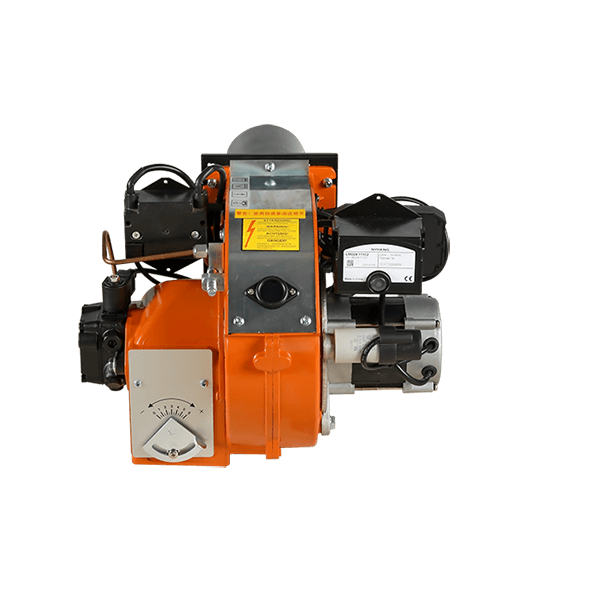

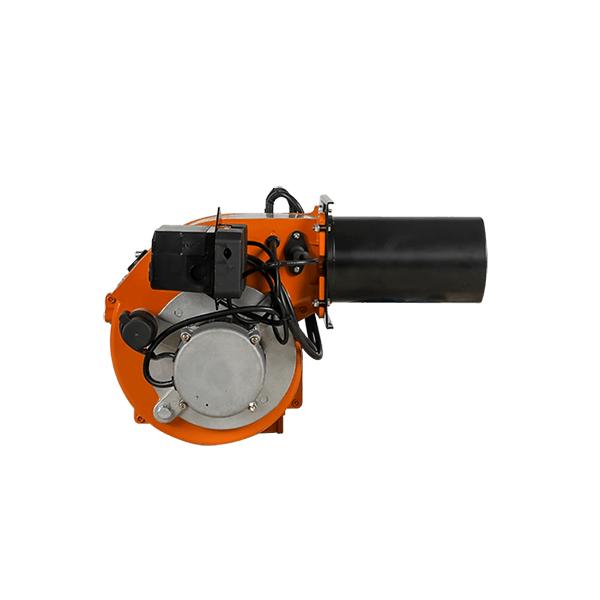

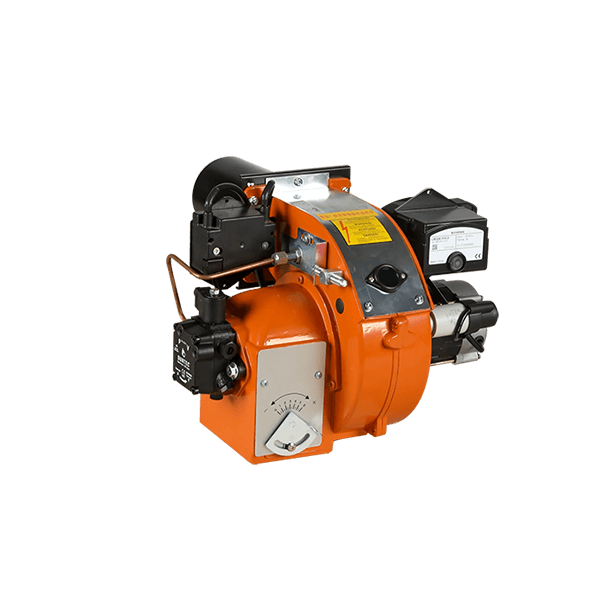

BYL14P hot sale Two Stage burner Diesel Burner for Industrial Boiler

    Two Stage Diesel Burner BY14P a kind of combustion device mainly based on light oil fuel, mainly composed of oil atomizer and air regulator.

    Model: BYL14P

    Brand: Baiyan

    Fuel: Diesel

    Output Power: 83-166kw

    Control Mode: two stage

    Applicable Power Supply: AC 230v 50Hz

    Applicable Boiler: 0.1T/H

    Certificate: ISO

    Packaging Details:Neutral/Customized packaging

    MOQ: 1pcs

    Delivery terms: Sea/Air/Land

    Delivery Port: Ningbo Port

    Our Light oil burner is suitable for all kinds of light oil other than gasoline, diesel, aviation kerosene, solvent oil as fuel! Diesel burners are more commonly used!

Features:

1. Diesel burner. two-stage operation

2. Adjust the combustion air and air supply pipe.

3. Combustion intake with throttle valve. Airflow adjustment with electric servo motor.

4. Completely close the damper when shutting down to avoid heat loss through the chimney.

5. The sliding boiler connection flange makes the blast pipe suitable for various types of boilers.

6. The device made of sound-absorbing material reduces fan noise.

7.7 pole socket for burner power and thermostat power

8.4 pole socket for secondary control.


Technical Parameters

Model

BYL14

BYL14P

BYL26

BYL26P

BYL35

BYL35P

Output Power

Kw

83-166

190-310

178-391

Control Mode

single stage

two stage

single stage

two stage

single stage

two stage

Fuel Consumption

Kg/h

7--14

16-26.1

15-33

Motor Power

kw

0.18

0.25

0.37

Applicable power supply

AC 230v 50Hz

AC 230v 50Hz

Safety Protection Level

IP 40 protection level can be improved according to different requirement)

NOx

80

Applicable boiler

T

0.1

0.4

0.2

0.3

0.3

0.4

Dimension

mm

475*455*340

650*520*385

940*490*390

Weight

Kg

18

18

32
